4. Adaptation Layer AAL

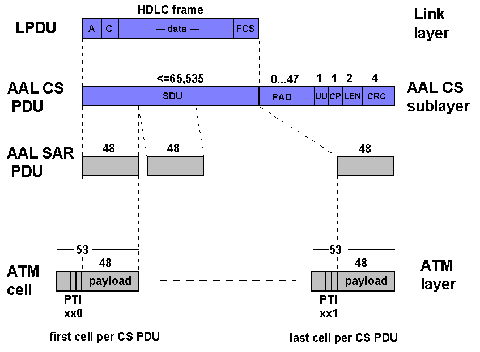

HDLC to ATM AAL5 Adaptation Layer Interface

HDLA ATM AAL5

AAL1 CBR, R/T, raw video, voice
AAL2 VBR, R/T adaptively compressed video/voice
AAL3/4 data block-oriented, multiplexed, error check
AAL5 data block-oriented, error check, most common
AAL ? for emerging wireless communication
