Advanced Structural Modeling

Advanced Classes

Classifier
A modeling element that describes structural features (attributes) and behavioral features (operations).
A modeling element that can have instances.

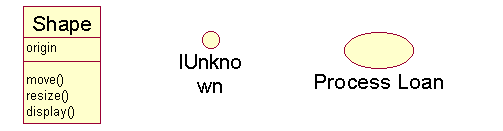

UML classifiers

Visibility

Public

Protected

Private

Scope

Instance

Each instance of the classifier holds its own value for the feature.

Classifier

There is just one value of the feature for all instances of the classifier.

Ts&

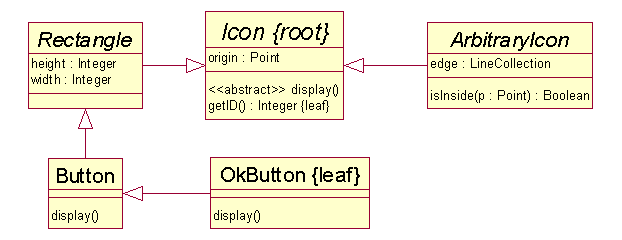

netscapeAbstract, Root, Leaf, and Polymorphic Elements

Abstract class: no instance, unimplemented operation(s)

Concrete class: has instance(s) and all operations are implemented.

Abstract operation: no implementation

Root class: no parent class or super class

Leaf class: no subclasses

Leaf operation: cannot be overridden or redefined by subclasses

Polymorphic operation: can be overridden or redefined by subclasses.

Multiplicity

Number of class instances

Number of elements of an array attribute

Attribute specification
Full form

[visibility] name [multiplicity] [:type] [=initial-value] [{property}]

Standard properties

changeable

addOnly: add element(s) only, no remove

frozen: no value change

Operation specification
Full form

[visibility] name [(parameter-list)] [:return-type] [{property}]

Standard properties

leaf: cannot be overridden

isOuery: does not change state

sequential: semantics of concurrent calls cannot be guaranteed.

guarded: sequencing and synchronizing concurrent calls

concurrent: semantics of concurrent calls are guaranteed

Parameter specification

Full form

[direction] name : type [=default-value]

Standard directions

in: an input parameter with input value, may not be modified

out: an output parameter, without input value, may be modified

inout: an input parameter with input value, may be modified

What is a utility class
A class with stereotype <<utility>> whose all attributes and operations have classifier scope (i.e. static).
Example: <<utility>> Math

Advanced Relationship

Association
Navigation
Association (role) visibility

Public: can be seen outside of the association
Private: cannot be seen outside of the association
Protected: can be only seen by subclasses of the association

Qualification through Qualifier

(bankAccount, accountNumber) ® 0 or 1 person

person ® many(bankAccount, accountNumber)

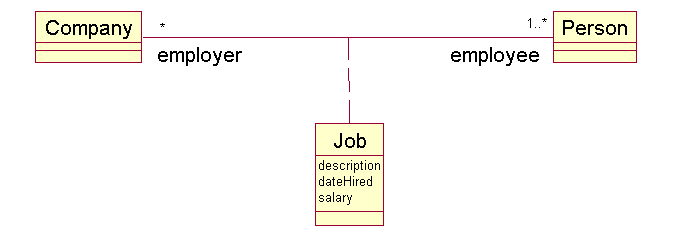

Association class

Realization
What

A realization is a semantic relationship between classifiers in which one (target) classifier specifies a contract that another (source) guarantees to carry out.

Where to use

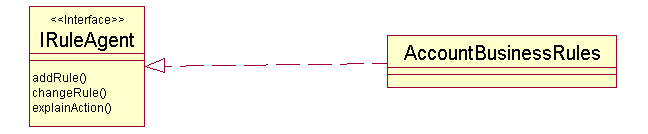

A class realizes an interface

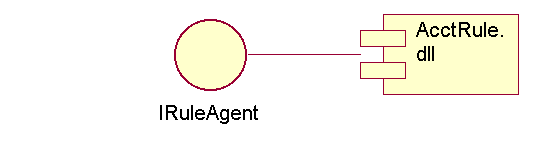

A component realizes an interface

A use-case realization realizes a use case or realization

Interfaces

What is an interface
An interface is a collection of operations that are used to specify a service of a class or component.
An interface does not specify any structure (attributes) nor any implementation of the operations in the collection.
An interface defines a line between the specification of what an abstraction does and the implementation of how that abstraction does it.

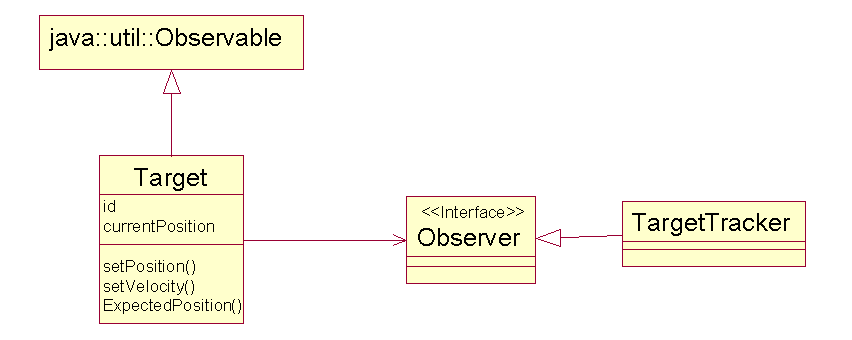

Relationships between interfaces and other classifiers
A class can realize one or more interfaces
An interface can be realized by one or more interfaces

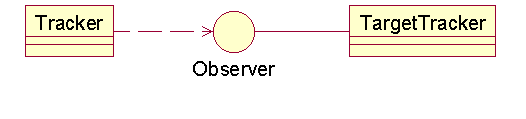

A class can depend on an interface

Inheritance relationship between interfaces

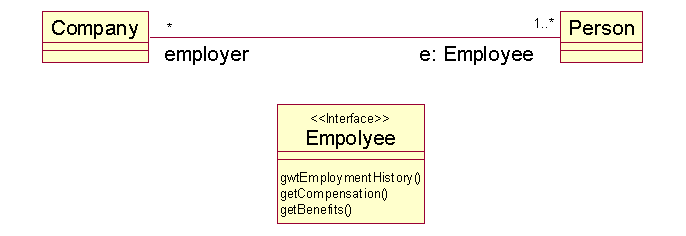

Interface for role

Packages

What is a package
A package is a general-purpose mechanism for organizing elements into groups.
Owned elements
A package can own other elements, even other packages.
Every element is uniquely owned by exactly one package.
A package forms a name space. Two elements owned by two different packages may have the same name.

Examples:

BuyerPackage::Information class

SellerPackage::Information class

Elements of different kinds may have the same name

Example:

BuyerPackage::Information class

BuyerPackage::Information component

Path names in nested packages

Example:

CustomerPackage::BuyerPackage::Information class

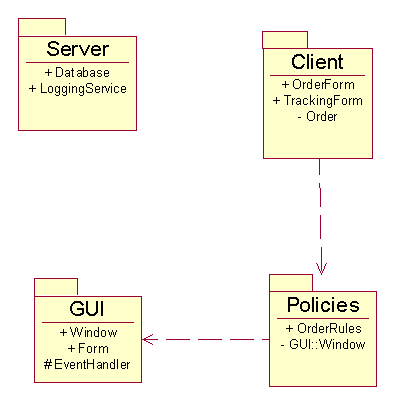

Visibility of owned elements

Public (+)
Private (-)
Protected (#)

A package exports all its public elements

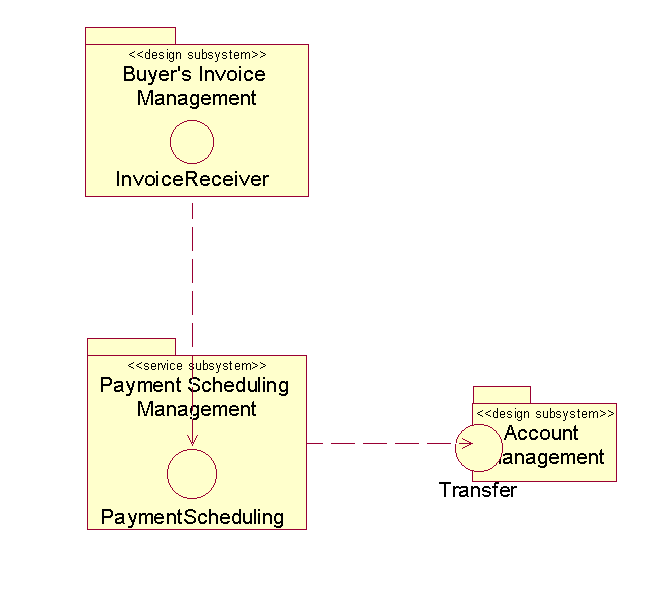

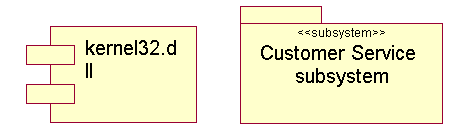

Subsystem – a stereotyped package
It is a package of elements treated as a unit, including a specification of the behavior of the entire package contents as a coherent unit.
A subsystem is modeled both as a package and as a class.

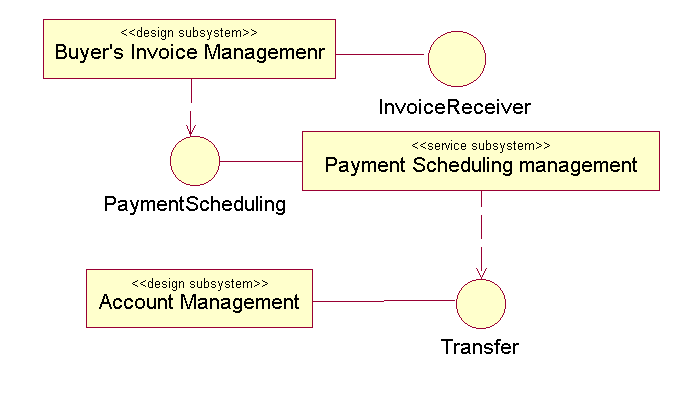

A subsystem has a set of interfaces that describe its relationship to the rest of the system
